For a range of professionals, from contractors and developers to architects and project managers, scan to Computer Aided Design (CAD) services are invaluable. By turning real-world spaces into precise, editable drawings, skilled engineering specialists can remove the guesswork from design and renovation projects.

Whether you need a layout drawing, an open-box drawing, elevation plans or a topography map, scan to CAD provides detailed measured drawings. At Surveyhands, we offer scan to CAD services in various formats to suit your project’s requirements, and our team has extensive experience working on buildings and sites of all sizes.

What is Scan to CAD?

Scan to CAD is a process that converts laser scan data into editable, design-ready CAD drawings. Using state-of-the-art equipment, such as laser scanners, cameras and drones, every inch of a building is captured with millimetre-level detail. This information is then processed in cloud-based AutoCAD software to produce accurate 2D or 3D CAD models, depending on the specific project requirements.

At Surveyhands, we specialise in producing precise and detailed as-built plans that meet the needs of various construction and real estate professionals. Our 2D scan to CAD and 3D scan to CAD services can be beneficial for a range of projects, and CAD technicians can produce everything from floor plans to section drawings. The highly accurate drawings we create become a dependable digital record of any structure.​

Why Scan to CAD Is Useful

Often, traditional survey methods rely on manual measurements, which increases the likelihood of inconsistencies and requires multiple site visits to create a CAD model. Whereas, 3D laser scanning can collect millions of points in minutes, each containing key information about its space coordinates. This results in digital drawings that offer several advantages:

• Accuracy and Reliability – Scan to CAD produces highly detailed, as-built documentation with minimal errors.

• Time Savings – Using laser equipment reduces on-site measuring time and enables quicker design workflows.

• Remote Collaboration – Having CAD models allows teams to collaborate using the same accurate designs, regardless of location.

• Cost Efficiency – Getting measurements right the first time minimises rework, design conflicts, and unnecessary site visits.

Scenarios Where Scan to CAD is Beneficial

From residential renovations to retail fit-outs, scan to CAD services play an essential role in capturing data quickly and with exceptional accuracy. By converting this data into CAD drawings, businesses can streamline the design, planning, and collaboration processes across countless real-world scenarios.

Renovations and Restorations

Renovation and restoration projects rely on precise as-built information. Using 3D scan to CAD services, existing conditions are captured exactly as they are, including any structural details. This ensures that architects have dependable drawings to guide design decisions and minimise guesswork, especially when working with older or more complex buildings.

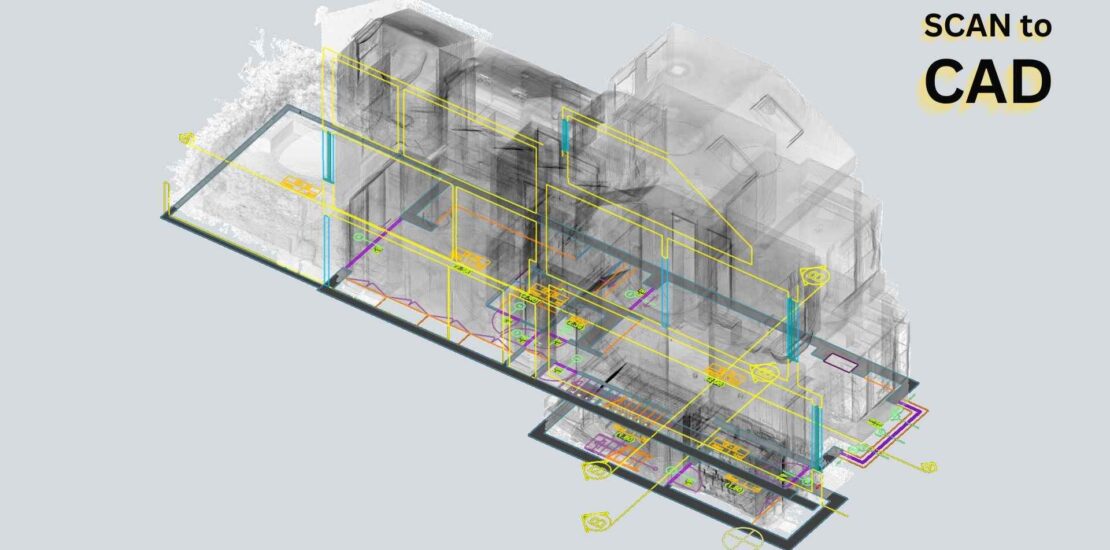

An excellent example is the Macduff Road Scan to CAD project, completed by our team at Surveyhands. For this renovation, laser scanning was used as a more efficient way to capture real-world measurements. We collaborated with MIMSTUDIO and created high-quality CAD drawings that could be used during the design and planning processes. We also provided architects with a 3D virtual model of the building, so they could explore every detail of the site remotely and avoid repeated visits during the project.

Remote Collaboration for Project Teams

Projects often involve several parties: clients, project managers, designers, contractors and more. One of the most significant benefits of scan to CAD services is that they allow everyone to work seamlessly on the same project, across multiple locations. Project teams can access digital models that perfectly replicate the space whenever they need them.

This was demonstrated in the Aldo Store scan to CAD project, where the London office was scanned to create both detailed CAD drawings and an immersive 3D virtual tour. The project architect, located in Canada, could easily explore the replica of the space, reviewing every detail and dimension. The laser scan data provided accurate floor plans, elevation drawings, and visual insights, helping the team make informed design decisions and deliver faster results.

Estate and Facilities Management

In addition to renovations, scan to CAD services are beneficial for property documentation and asset management. Real estate professionals use CAD drawings to maintain accurate digital records of things like existing layouts, leasing documentation, and long-term maintenance planning. These visuals can assist with space utilisation and provide an accurate view of building conditions, boosting transparency and trust during property transactions.

Interior Design and Refurbishment Planning

For fit-outs and refurbishments, 2D scan to CAD drawings provide interior designers with reliable data to plan layouts, calculate dimensions for fixtures and fittings, and visualise proposed changes. With access to true-to-scale drawings, design teams can efficiently plan refurbishments, reducing the need for site visits. The inclusion of 3D virtual models also helps clients better understand proposed designs before work begins.

Construction and Engineering Documentation

Accurate as-built CAD drawings are also indispensable for ongoing construction projects. Contractors and engineers use 3D scan to CAD services to cross-check on-site progress against planned layouts, helping to prevent discrepancies and the issues they cause. This accuracy at every stage of the project can shorten timelines, support compliance with building standards and other regulations, and enhance overall quality control.

The Value of Immersive Digital Models

It’s not just highly accurate CAD drawings that make scan to CAD services so popular. Our ability to create 3D virtual tours at Surveyhands can be incredibly beneficial. These 3D models enable clients to navigate buildings remotely and view crucial spatial relationships in real time.

By combining editable CAD drawings with navigable virtual tours, we can streamline decision-making and reduce the need for site-based inspections, which can be particularly useful for international teams.

We understand that different projects have different output needs, and scan to CAD services offer a variety of deliverables. Each CAD model is created using point cloud technology, meaning they can be trusted for accuracy down to the millimetre. These precise files are easily shareable and editable, fitting smoothly into any existing digital workflow.​

2D and 3D Scan to CAD Services

When it comes to design and construction, time and accuracy are everything, and scan to CAD delivers both. By turning physical sites into precise digital CAD drawings, teams have a dependable reference point for planning, renovation, or asset analysis.

Regardless of what your project entails, whether it’s a retail fit-out or a residential renovation, 2D and 3D scan to CAD services deliver measurable advantages. Ultimately, this technology enables professionals to work more flexibly, make better-informed decisions, and complete projects with confidence and speed.
